NO/XLPE Round Wire ACSR Stranded Overhead Cable for High Voltage Steel Reinforcement

Ask Lasest Price
Brand Name :	Zhufeng
Model Number :	ACSR Cable
Certification :	ISO, CCC, CE, RoHS
Price :	$0.31/meters 1000-9999 meters

Add to Cart

Product Details
Company Profile

NO/XLPE Round Wire ACSR Stranded Overhead Cable for High Voltage Steel Reinforcement

Product Description

Product model: JKLV, JKLYJ, JKLGYJ

Number of cable cores: single core

Conductor cross section: 10-630mm2

Conductor material: aluminum core, steel core

Sheath material: anti-aging polyethylene insulation

Rated voltage: 1KV, 10KV, 35KV

Executive standard: GB/T1179-2020

Working temperature: The maximum working temperature of PVC and polyethylene insulation does not exceed 70°C, and XLPE insulation does not exceed 90°C; when short-circuited, the maximum temperature of the cable conductor, PVC insulation does not exceed 160°C, and polyethylene insulation does not exceed 160°C. Exceeding 150°C, cross-linked polyethylene insulation shall not exceed 250°C, and the duration shall not exceed 5S.

Bending radius: Cables with a rated voltage below 1KV: if the outer diameter (D) of the cable is less than 25mm, it should not be less than 4D, and if the outer diameter (D) of the cable is 25mm or above, it should not be less than 6D; Should not be less than 20(D+d). In the formula: D- the actual outer diameter of the cable, d- the actual outer diameter of the cable conductor.

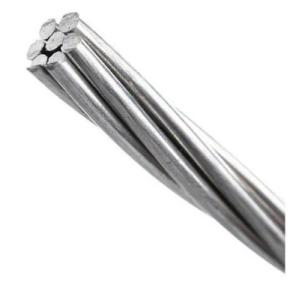

ACSR is made of twisted aluminum wire and steel wire, suitable for overhead transmission lines.The inside of it is a steel core, and the outside is twisted with aluminum wires around the steel core; the steel core mainly plays the role of increasing the strength, and the aluminum stranded wire mainly plays the role of transmitting electric energy. Steel-cored aluminum stranded wire, LGJ, has the advantages of simple structure, convenient erection and maintenance, low line cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as across rivers and valleys, and has good electrical conductivity and sufficient mechanical strength. It has the characteristics of high tensile strength and the distance between the tower and pole can be enlarged.Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

Type	Name	Main Application
JKYJ	Copper Conductor, XLPE Insulated Aerial Cable	Fixed laid overhead, and the flexible copper core products are suitable for the down-leading wire of transformers
JKTRYJ	Copper Conductor, XLPE Insulated Aerial Flexible Cable
JKLYJ	Aluminum Conductor, XLPE Insulated Aerial Cable
JKLHYJ	Aluminum Alloy Conductor, XLPE Insulated Aerial Cable	Certain distance should be kept between the cable and trees when laid, and the cable is permitted to touch with trees for short time when working.
JKY	Copper Conductor, PE Insulated Aerial Cable
JKTRY	Copper Conductor, PE Insulated Aerial Flexible Cable
JKLY	Aluminum Conductor, PE Insulated Aerial Cable
